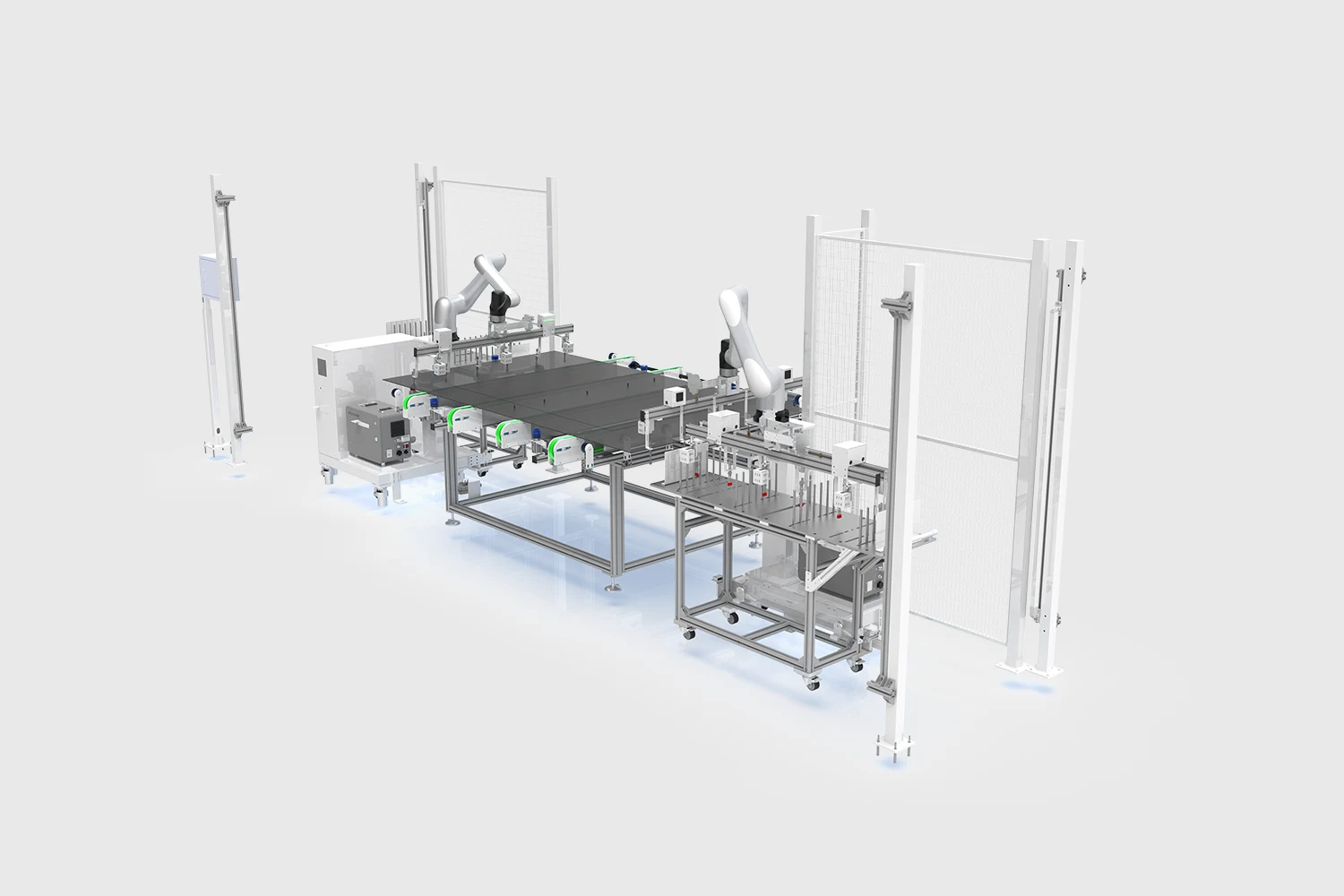

This equipment is designed for the automated placement and welding of EVA strips onto PV modules. PV modules are fed into the workstation through a customized conveyor system with pneumatic alignment mechanisms. The system incorporates an automatic deviation correction function to ensure precise EVA application. It operates at high speed with exceptional stability, featuring a compact layout and user-friendly, flexible operation.
| Applicable edition | 1650-2520(mm)；990-1450(mm) |
| Cycle Time | 14s |
| Source | Single-phase AC220V, 50Hz,3kVA |
| Gas source | 0.4-0.6(MPa)；Compressed Air：0.3m³/min |
| Noise | ≤60dB |
| Net Weight | 1800kg |
| Equipment Size(L×W×H) | 6100*1900*2050mm |
| EVA strip placement accuracy | ±0.5mm |
