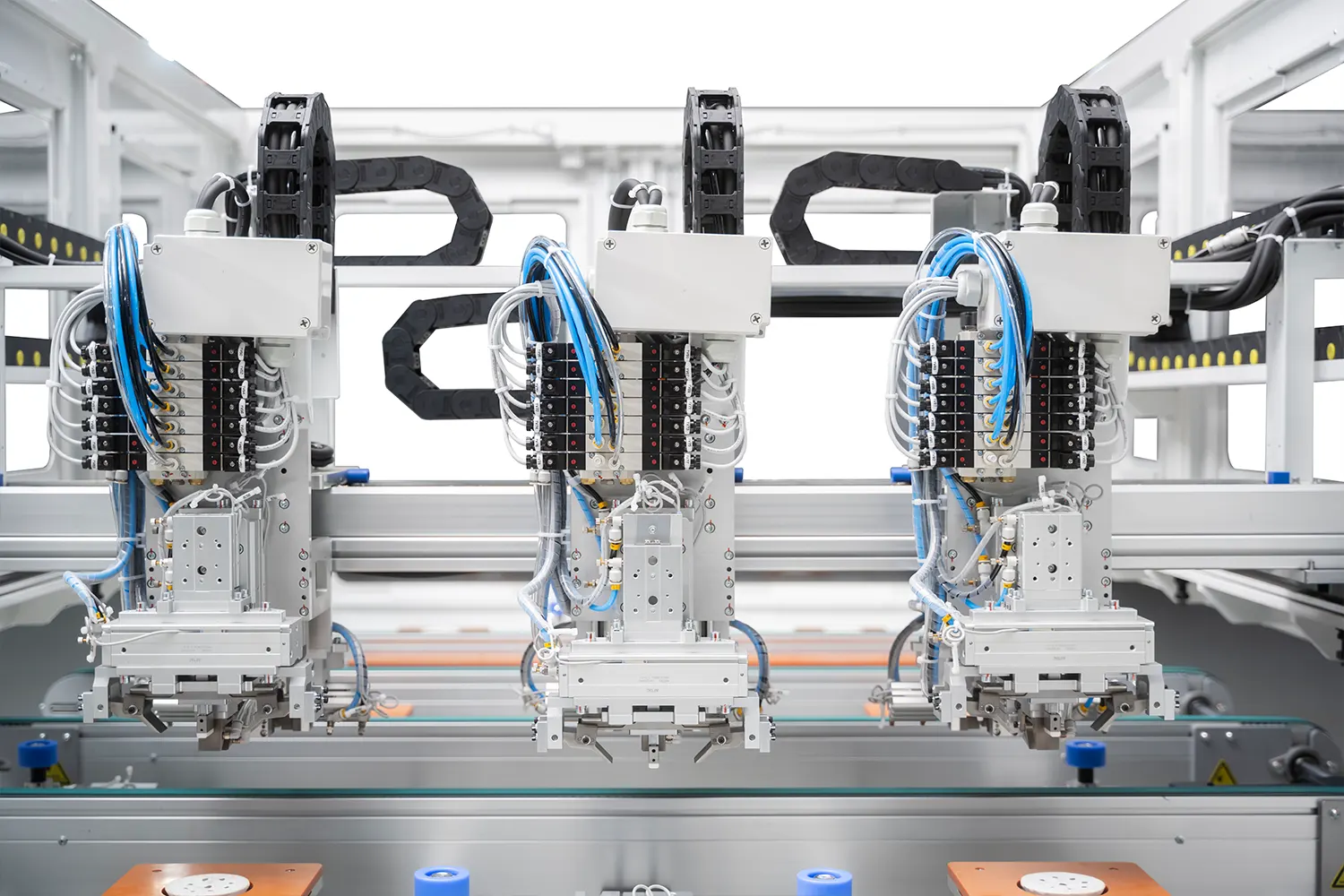

This unit features automatic ribbon handling. The ribbon positioning is motor-controlled, ensuring fast and precise operation. It is equipped with a gantry axis system for stable and highly efficient positioning. For single-glass module, it is recommended to use small high-temperature resistant fabric pads during operation.
| Applicable edition | 1650-2520(mm)*990-1450(mm) |
| Cycle Time | 12s |
| Source | AC 3 phase, 380V/N/PE, 50Hz,10kVA |
| Gas source | 0.4-0.6(MPa)；Compressed Air：0.3m³/min |
| Noise | ≤75dB |
| Net Weight | 2130kg |
| Equipment Size(L×W×H) | 3300*1800*2100mm |
| Installation and positioning accuracy | ≤±0.2mm |
| Accuracy of repeated installation | ≤±0.05mm |
