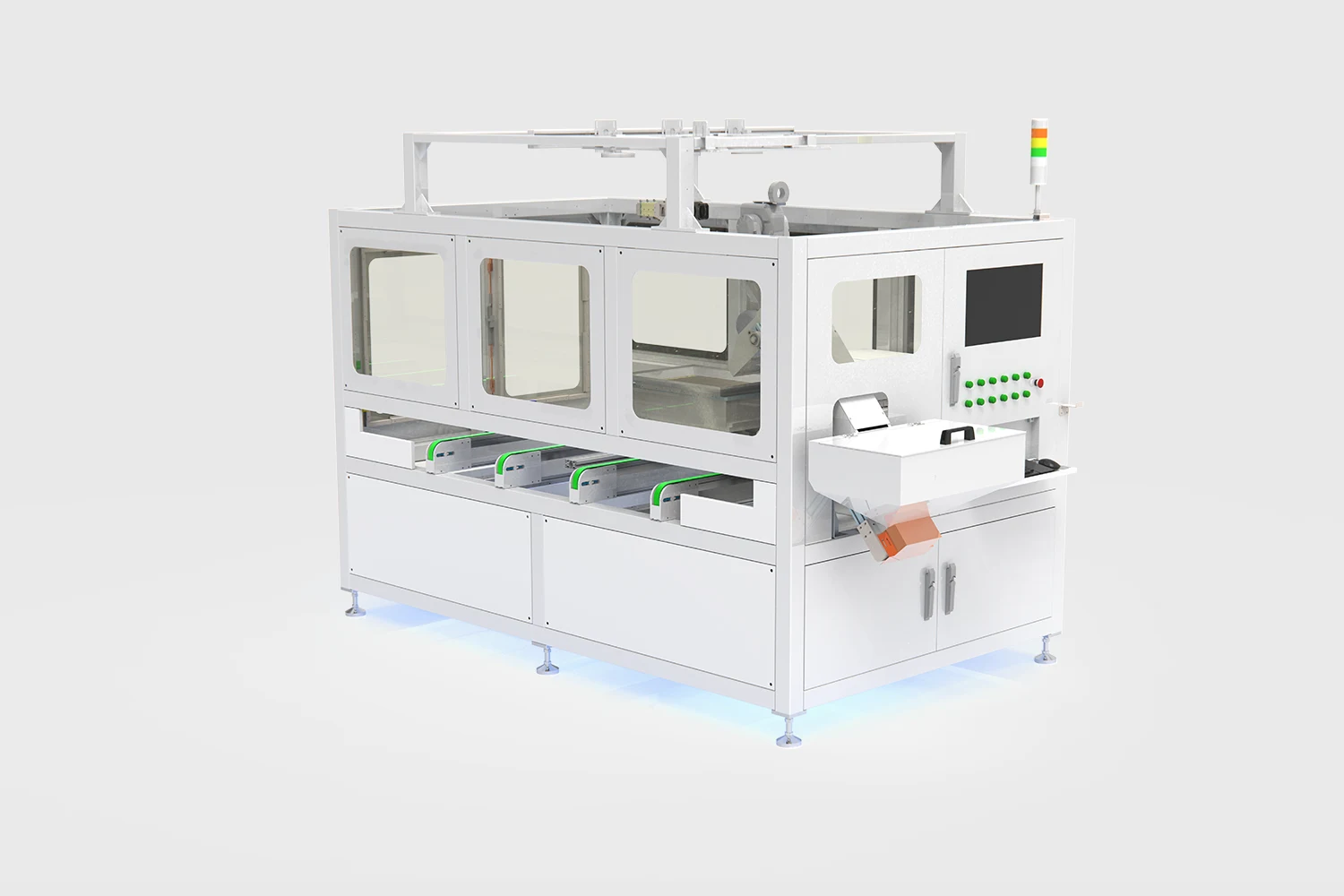

The equipment is used for the automatic capping of PV module junction boxes. The structure is compact, easy to integrate, compatible with mainstream junction box types, and convenient for type change. It has functions such as quality inspection after capping and potting, Ample Buffer Capacity, stable and efficient operation.
| L：1650-2520(mm)；W：990-1450(mm) | |
| Cycle Time | 12s |
| Source | AC 3 phase, 380V/N/PE, 50Hz, 10kVA |
| Gas source | 0.4-0.6(MPa)；Compressed Air：0.3m³/min |
| Noise | ≤70dB |
| Net Weight | 2000kg |
| Equipment Size(L×W×H) | 4250*1800*2450mm |
| Installation and positioning accuracy | ≤±0.2mm |
| Accuracy of repeated installation | ≤±0.05mm |
