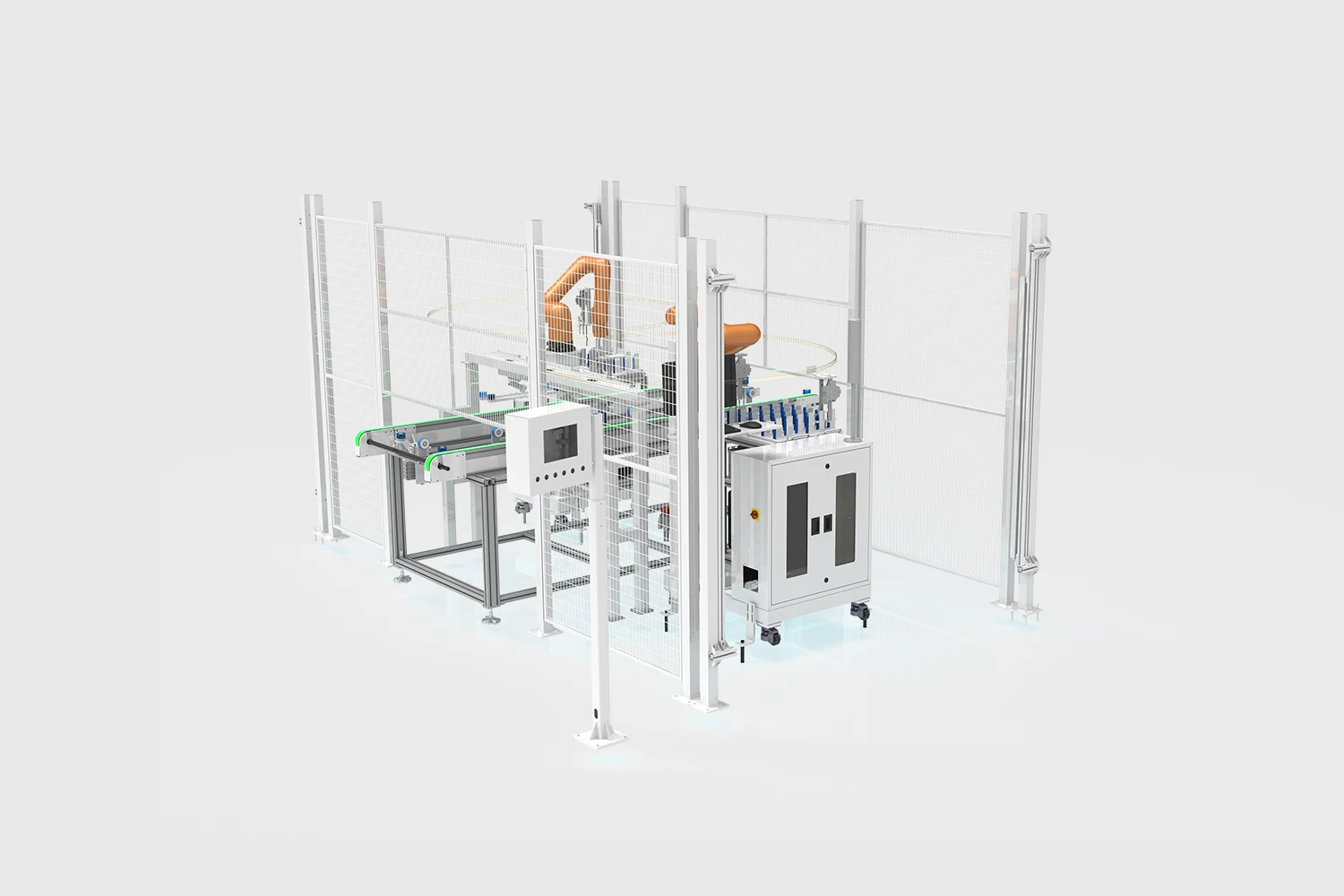

The robotic system automatically places pre-cut EVA patches onto ribbon locations. An integrated vision system performs imaging inspection after placement to verify accuracy, while an automatic deviation correction function ensures precise positioning. The equipment delivers high-speed, stable operation with a compact footprint and user-friendly, flexible controls.
| Applicable edition | 1650-2520(mm)；990-1450(mm) |
| Cycle Time | 14s |
| Source | Single-phase AC220V, 50Hz,3kVA |
| Gas source | 0.4-0.6(MPa)；压缩空气/Compressed Air：0.5m³/min |
| Noise | ≤60dB |
| Net Weight | 1800kg |
| Equipment Size(L×W×H) | 4616*2772*2200mm |
| Compatible with incoming material specifications | 1.EVA small block opening size>10mm
2. Small holes should be as central as possible |
