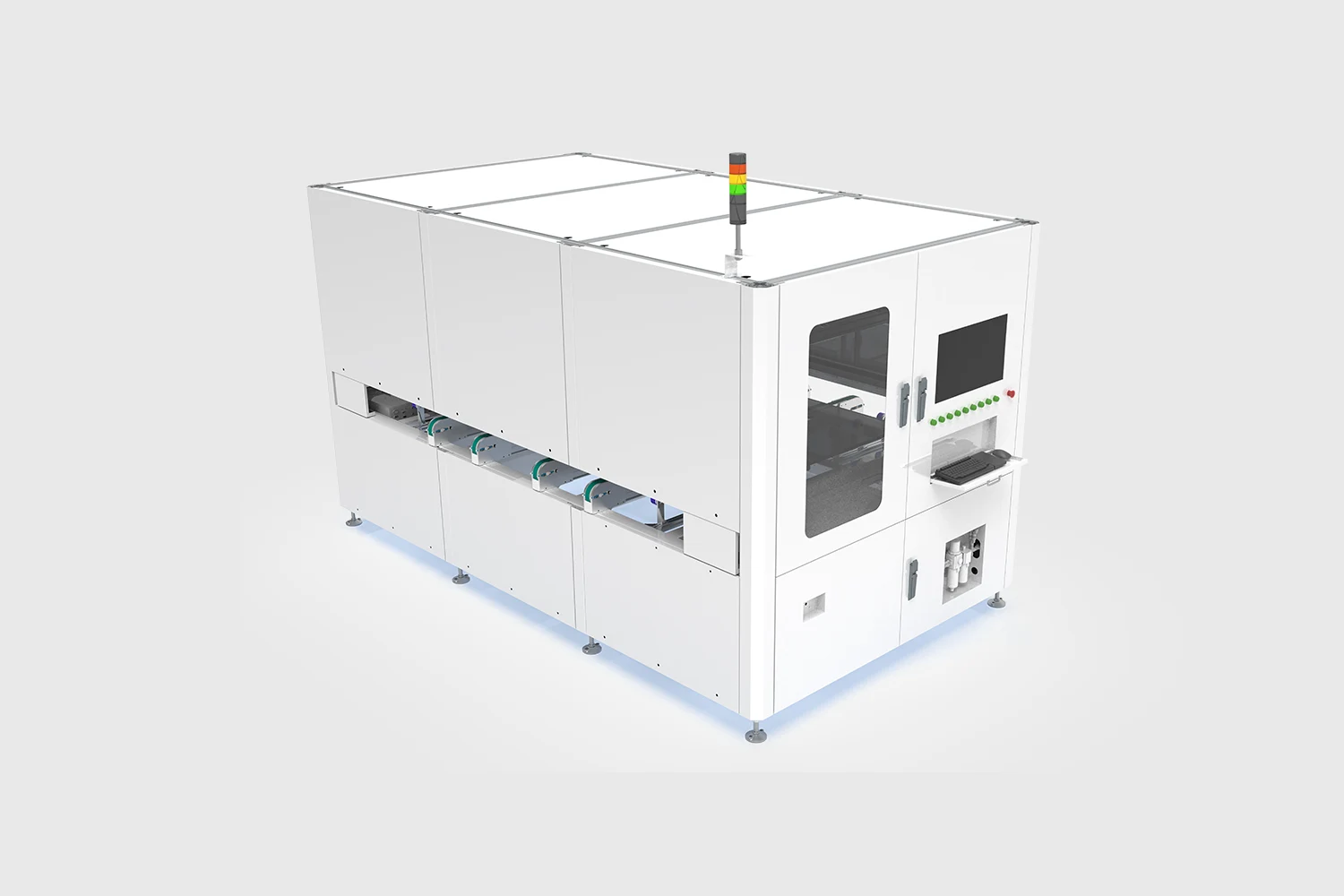

This system is designed to automatically apply solder paste to photovoltaic cell strings, replacing manual dispensing to improve production efficiency. Equipped with a high-definition industrial camera, it ensures high-precision visual alignment.
| Applicable edition | 1650-2520(mm)*990-1450(mm) |
| Cycle Time | 24s |
| Source | AC 3 phase, 380V/N/PE, 50Hz,10kVA |
| Gas source | 0.4-0.6(MPa)；Compressed Air：0.4m³/min |
| Noise | ≤75dB |
| Net Weight | 2500kg |
| Equipment Size(L×W×H) | 3936*2100*1967mm |
| Compatible with incoming material specifications | 1. Tin paste diameter D=21~26.5mm
2. Tin paste material selection 4,5,6 powder (3 powder can also be used), the smaller the spray point diameter, the larger the powder number (6 powder is 515um, 4 powder:2038um), the larger the spray point diameter, the viscosity is about 60Pa.s. |
